int pid = fork();
if(pid > 0){
	printf("parent: child=%d\n", pid);
	pid = wait();
	printf("child %d is done\n", pid);
} else if(pid == 0){
	printf("child: exiting\n");
	exit();
} else {
	printf("fork error\n");
}

parent: child=1234
child: exiting
child 1234 is done

char *argv[3];
argv[0] = "echo";
argv[1] = "hello";
argv[2] = 0;
exec("/bin/echo", argv);
printf("exec error\n");

int
main(void)
{
  static char buf[100];

  while(getcmd(buf, sizeof(buf)) >= 0){
    if(fork1() == 0)
      runcmd(parsecmd(buf));
    wait();
  }
  exit();
}

void
runcmd(struct cmd *cmd)
{
  struct execcmd *ecmd;

  switch(cmd->type){
  	...
  case EXEC:
    ecmd = (struct execcmd*)cmd;
    exec(ecmd->argv[0], ecmd->argv);
    printf(2, "exec %s failed\n", ecmd->argv[0]);
    break;
    ...
  }
  exit();
}

char buf[512];

void
cat(int fd)
{
  int n;

  while((n = read(fd, buf, sizeof(buf))) > 0) { // читаем из указанного дескриптора
    if (write(1, buf, n) != n) {  // пишем в 1, то есть stdout
      printf(1, "cat: write error\n");
      exit();
    }
  }

  // error handling
  if(n < 0){
    printf(1, "cat: read error\n");
    exit();
  }
}

int
main(int argc, char *argv[])
{
  int fd, i;

  if(argc <= 1){ // если аргументов не указано, то читаем из 0, то есть stdin
    cat(0);
    exit();
  }

  for(i = 1; i < argc; i++){ // если аргументы есть, то открываем файлы по этим путям и читаем из дескрипторов этих файлов
    if((fd = open(argv[i], 0)) < 0){
      printf(1, "cat: cannot open %s\n", argv[i]);
      exit();
    }
    cat(fd);
    close(fd);
  }
  exit();
}

char *argv[2];
argv[0] = "cat";
argv[1] = 0;
if(fork() == 0) {
	close(0);
	open("input.txt", O_RDONLY);
	exec("cat", argv);
}

void
runcmd(struct cmd *cmd)
{
  struct redircmd *rcmd;

    switch(cmd->type){
  ...

  case REDIR:
    rcmd = (struct redircmd*)cmd;
    close(rcmd->fd);
    if(open(rcmd->file, rcmd->mode) < 0){
      printf(2, "open %s failed\n", rcmd->file);
      exit();
    }
    runcmd(rcmd->cmd);
    break;
	...
  }
  exit();
}

...

struct cmd*
parseredirs(struct cmd *cmd, char **ps, char *es)
{
  int tok;
  char *q, *eq;

  while(peek(ps, es, "<>")){
    tok = gettoken(ps, es, 0, 0);
    switch(tok){
    case '<':
      cmd = redircmd(cmd, q, eq, O_RDONLY, 0);
      break;
    case '>':
      cmd = redircmd(cmd, q, eq, O_WRONLY|O_CREATE, 1);
      break;
    case '+':  // >>
      cmd = redircmd(cmd, q, eq, O_WRONLY|O_CREATE, 1);
      break;
    }
  }
  return cmd;
}

if(fork() == 0) {
	write(1, "hello ", 6);
	exit();
} else {
	wait();
	write(1, "world\n", 6);
}

fd = dup(1);
write(1, "hello ", 6);
write(fd, "world\n", 6);

ls existing-file non-existing-file > tmp1 2>&1

int p[2];
char *argv[2];
argv[0] = "wc";
argv[1] = 0;

pipe(p);
if(fork() == 0) {
	close(0);
	dup(p[0]);
	close(p[0]);
	close(p[1]);
	exec("/bin/wc", argv);
} else {
	close(p[0]);
	write(p[1], "hello world\n", 12);
	close(p[1]);
}

void
runcmd(struct cmd *cmd)
{
   struct pipecmd *pcmd;

  switch(cmd->type){
 	...
  case PIPE:
    pcmd = (struct pipecmd*)cmd;
    if(pipe(p) < 0)
      panic("pipe");
    if(fork1() == 0){
      close(1);
      dup(p[1]);
      close(p[0]);
      close(p[1]);
      runcmd(pcmd->left);
    }
    if(fork1() == 0){
      close(0);
      dup(p[0]);
      close(p[0]);
      close(p[1]);
      runcmd(pcmd->right);
    }
    close(p[0]);
    close(p[1]);
    wait();
    wait();
    break;
    ...
  }
  exit();
}

open("a", O_CREATE|O_WRONLY);
link("a", "b");

  movl    $(V2P_WO(entrypgdir)), %eax
  movl    %eax, %cr3

__attribute__((__aligned__(PGSIZE)))
pde_t entrypgdir[NPDENTRIES] = {
  // Map VA's [0, 4MB) to PA's [0, 4MB)
  [0] = (0) | PTE_P | PTE_W | PTE_PS,
  // Map VA's [KERNBASE, KERNBASE+4MB) to PA's [0, 4MB)
  [KERNBASE>>PDXSHIFT] = (0) | PTE_P | PTE_W | PTE_PS,
};

  orl     $(CR0_PG|CR0_WP), %eax
  movl    %eax, %cr0

  # Set up the stack pointer.
  movl $(stack + KSTACKSIZE), %esp

  # Jump to main(), and switch to executing at
  # high addresses. The indirect call is needed because
  # the assembler produces a PC-relative instruction
  # for a direct jump.
  mov $main, %eax
  jmp *%eax

// Per-process state
struct proc {
  uint sz;                     // Size of process memory (bytes)
  pde_t* pgdir;                // Page table
  char *kstack;                // Bottom of kernel stack for this process
  enum procstate state;        // Process state
  int pid;                     // Process ID
  struct proc *parent;         // Parent process
  struct trapframe *tf;        // Trap frame for current syscall
  struct context *context;     // swtch() here to run process
  void *chan;                  // If non-zero, sleeping on chan
  int killed;                  // If non-zero, have been killed
  struct file *ofile[NOFILE];  // Open files
  struct inode *cwd;           // Current directory
  char name[16];               // Process name (debugging)
};

struct context {
  uint edi;
  uint esi;
  uint ebx;
  uint ebp;
  uint eip;
};

// Bootstrap processor starts running C code here.
// Allocate a real stack and switch to it, first
// doing some setup required for memory allocator to work.
int
main(void)
{
  kinit1(end, P2V(4*1024*1024)); // phys page allocator
  kvmalloc();      // kernel page table
  mpinit();        // detect other processors
  lapicinit();     // interrupt controller
  seginit();       // segment descriptors
  picinit();       // disable pic
  ioapicinit();    // another interrupt controller
  consoleinit();   // console hardware
  uartinit();      // serial port
  pinit();         // process table
  tvinit();        // trap vectors
  binit();         // buffer cache
  fileinit();      // file table
  ideinit();       // disk
  startothers();   // start other processors
  kinit2(P2V(4*1024*1024), P2V(PHYSTOP)); // must come after startothers()
  userinit();      // first user process
  mpmain();        // finish this processor's setup
}

// Look in the process table for an UNUSED proc.
// If found, change state to EMBRYO and initialize
// state required to run in the kernel.
// Otherwise return 0.
static struct proc*
allocproc(void)
{
  struct proc *p;
  char *sp;

  acquire(&ptable.lock);

  for(p = ptable.proc; p < &ptable.proc[NPROC]; p++)
    if(p->state == UNUSED)
      goto found;

  release(&ptable.lock);
  return 0;

found:
  p->state = EMBRYO;
  p->pid = nextpid++;

  release(&ptable.lock);

  // Allocate kernel stack.
  if((p->kstack = kalloc()) == 0){
    p->state = UNUSED;
    return 0;
  }
  sp = p->kstack + KSTACKSIZE;

  // Leave room for trap frame.
  sp -= sizeof *p->tf;
  p->tf = (struct trapframe*)sp;

  // Set up new context to start executing at forkret,
  // which returns to trapret.
  sp -= 4;
  *(uint*)sp = (uint)trapret;

  sp -= sizeof *p->context;
  p->context = (struct context*)sp;
  memset(p->context, 0, sizeof *p->context);
  p->context->eip = (uint)forkret;

  return p;
}

void
userinit(void)
{
  struct proc *p;
  extern char _binary_initcode_start[], _binary_initcode_size[];

  p = allocproc();

  initproc = p;
  if((p->pgdir = setupkvm()) == 0)
    panic("userinit: out of memory?");
  inituvm(p->pgdir, _binary_initcode_start, (int)_binary_initcode_size);
  p->sz = PGSIZE;
  memset(p->tf, 0, sizeof(*p->tf));
  p->tf->cs = (SEG_UCODE << 3) | DPL_USER;
  p->tf->ds = (SEG_UDATA << 3) | DPL_USER;
  p->tf->es = p->tf->ds;
  p->tf->ss = p->tf->ds;
  p->tf->eflags = FL_IF;
  p->tf->esp = PGSIZE;
  p->tf->eip = 0;  // beginning of initcode.S

  safestrcpy(p->name, "initcode", sizeof(p->name));
  p->cwd = namei("/");

  // this assignment to p->state lets other cores
  // run this process. the acquire forces the above
  // writes to be visible, and the lock is also needed
  // because the assignment might not be atomic.
  acquire(&ptable.lock);

  p->state = RUNNABLE;

  release(&ptable.lock);
}

void
scheduler(void)
{
  struct proc *p;
  struct cpu *c = mycpu();
  c->proc = 0;

  for(;;){
    // Enable interrupts on this processor.
    sti();

    // Loop over process table looking for process to run.
    acquire(&ptable.lock);
    for(p = ptable.proc; p < &ptable.proc[NPROC]; p++){
      if(p->state != RUNNABLE)
        continue;

      // Switch to chosen process.  It is the process's job
      // to release ptable.lock and then reacquire it
      // before jumping back to us.
      c->proc = p;
      switchuvm(p);
      p->state = RUNNING;

      swtch(&(c->scheduler), p->context);
      switchkvm();

      // Process is done running for now.
      // It should have changed its p->state before coming back.
      c->proc = 0;
    }
    release(&ptable.lock);

  }
}

  # Return falls through to trapret...
.globl trapret
trapret:
  popal
  popl %gs
  popl %fs
  popl %es
  popl %ds
  addl $0x8, %esp  # trapno and errcode
  iret

# exec(init, argv)
.globl start
start:
  pushl $argv
  pushl $init
  pushl $0  // where caller pc would be
  movl $SYS_exec, %eax
  int $T_SYSCALL

# char init[] = "/init\0";
init:
  .string "/init\0"

# char *argv[] = { init, 0 };
.p2align 2
argv:
  .long init
  .long 0

vector 32:
  pushl $0 //error code
  pushl $32 //vector number of timer interrupt
  jmp alltraps

.globl alltraps
alltraps:
  # Build trap frame.
  pushl %ds #data segment register
  pushl %es #extra segment register
  pushl %fs #general segment register
  pushl %gs #general segment register
  pushal	#all local registers (push EAX,EBX,ECX,EDX,ESP,EBP,ESI,EDI)

  # Set up data segments.
  movw $(SEG_KDATA<<3), %ax
  movw %ax, %ds
  movw %ax, %es

  # Call trap(tf), where tf=%esp
  pushl %esp
  call trap
  addl $4, %esp

  # Return falls through to trapret...
.globl trapret
trapret:
  popal
  popl %gs
  popl %fs
  popl %es
  popl %ds
  addl $0x8, %esp  # trapno and errcode
  iret

struct trapframe {
  // registers as pushed by pusha
  uint edi;
  uint esi;
  uint ebp;
  uint oesp;      // useless & ignored
  uint ebx;
  uint edx;
  uint ecx;
  uint eax;

  // rest of trap frame
  ushort gs;
  ushort padding1;
  ushort fs;
  ushort padding2;
  ushort es;
  ushort padding3;
  ushort ds;
  ushort padding4;
  uint trapno;

  // below here defined by x86 hardware
  uint err;
  uint eip;
  ushort cs;
  ushort padding5;
  uint eflags;

  // below here only when crossing rings, such as from user to kernel
  uint esp;
  ushort ss;
  ushort padding6;
};

err
trapno
padding4
ds
padding3
es
padding2
fs
padding1
gs
eax
ecx
edx
ebx
oesp
ebp
esi
edi <--- $esp

if(myproc() && myproc()->state == RUNNING &&
   tf->trapno == T_IRQ0+IRQ_TIMER)
yield();

// Give up the CPU for one scheduling round.
void
yield(void)
{
  acquire(&ptable.lock);
  proc->state = RUNNABLE;
  sched();
  release(&ptable.lock);
}

// Enter scheduler.  Must hold only ptable.lock
// and have changed proc->state.
void
sched(void)
{
  int intena;

  // If we aren't holding the ptable lock, panic
  if(!holding(&ptable.lock))
    panic("sched ptable.lock");

  // If we aren't 1 pushcli level deep, panic
  if(cpu->ncli != 1)
    panic("sched locks");

  // If the current process is in the running state, panic
  if(proc->state == RUNNING)
    panic("sched running");

  // If the processor can be interrupted, panic
  if(readeflags()&FL_IF)
    panic("sched interruptible");

  intena = cpu->intena;
  swtch(&proc->context, cpu->scheduler);
  cpu->intena = intena;
}

# Context switch
#
#   void swtch(struct context **old, struct context *new);
#
# Save current register context in old
# and then load register context from new.

.globl swtch
swtch:
  movl 4(%esp), %eax
  movl 8(%esp), %edx # сохраняем *new в %edx, **old в %eax

  # Save old callee-save registers
  pushl %ebp
  pushl %ebx
  pushl %esi
  pushl %edi

  # Switch stacks
  movl %esp, (%eax)
  movl %edx, %esp   # пишем значение %edx, то есть *new в %esp

  # Load new callee-save registers
  popl %edi
  popl %esi
  popl %ebx
  popl %ebp
  ret

// Allocate one page table for the machine for the kernel address
// space for scheduler processes.
void
kvmalloc(void)
{
  kpgdir = setupkvm();
  switchkvm();
}

// Set up kernel part of a page table.
pde_t*
setupkvm(void)
{
  pde_t *pgdir;
  struct kmap *k;

  if((pgdir = (pde_t*)kalloc()) == 0)
    return 0;
  memset(pgdir, 0, PGSIZE);
  if (P2V(PHYSTOP) > (void*)DEVSPACE)
    panic("PHYSTOP too high");
  for(k = kmap; k < &kmap[NELEM(kmap)]; k++)
    if(mappages(pgdir, k->virt, k->phys_end - k->phys_start,
                (uint)k->phys_start, k->perm) < 0) {
      freevm(pgdir);
      return 0;
    }
  return pgdir;
}

// Allocate one 4096-byte page of physical memory.
// Returns a pointer that the kernel can use.
// Returns 0 if the memory cannot be allocated.
char*
kalloc(void)
{
  struct run *r;

  if(kmem.use_lock)
    acquire(&kmem.lock);
  r = kmem.freelist;
  if(r)
    kmem.freelist = r->next;
  if(kmem.use_lock)
    release(&kmem.lock);
  return (char*)r;
}

static struct kmap {
  void *virt;
  uint phys_start;
  uint phys_end;
  int perm;
} kmap[] = {
 { (void*)KERNBASE, 0,             EXTMEM,    PTE_W}, // I/O space
 { (void*)KERNLINK, V2P(KERNLINK), V2P(data), 0},     // kern text+rodata
 { (void*)data,     V2P(data),     PHYSTOP,   PTE_W}, // kern data+memory
 { (void*)DEVSPACE, DEVSPACE,      0,         PTE_W}, // more devices
};

for(k = kmap; k < &kmap[NELEM(kmap)]; k++)
    if(mappages(pgdir, k->virt, k->phys_end - k->phys_start,
                (uint)k->phys_start, k->perm) < 0) {
      freevm(pgdir);
      return 0;
    }

// Create PTEs for virtual addresses starting at va that refer to
// physical addresses starting at pa. va and size might not
// be page-aligned.
static int
mappages(pde_t *pgdir, void *va, uint size, uint pa, int perm)
{
  char *a, *last;
  pte_t *pte;

  a = (char*)PGROUNDDOWN((uint)va);
  last = (char*)PGROUNDDOWN(((uint)va) + size - 1);
  for(;;){
    if((pte = walkpgdir(pgdir, a, 1)) == 0)
      return -1;
    if(*pte & PTE_P)
      panic("remap");
    *pte = pa | perm | PTE_P;
    if(a == last)
      break;
    a += PGSIZE;
    pa += PGSIZE;
  }
  return 0;
}

// Return the address of the PTE in page table pgdir
// that corresponds to virtual address va.  If alloc!=0,
// create any required page table pages.
static pte_t *
walkpgdir(pde_t *pgdir, const void *va, int alloc)
{
  pde_t *pde;
  pte_t *pgtab;

  pde = &pgdir[PDX(va)];
  if(*pde & PTE_P){
    pgtab = (pte_t*)P2V(PTE_ADDR(*pde));
  } else {
    if(!alloc || (pgtab = (pte_t*)kalloc()) == 0)
      return 0;
    // Make sure all those PTE_P bits are zero.
    memset(pgtab, 0, PGSIZE);
    // The permissions here are overly generous, but they can
    // be further restricted by the permissions in the page table
    // entries, if necessary.
    *pde = V2P(pgtab) | PTE_P | PTE_W | PTE_U;
  }
  return &pgtab[PTX(va)];
}

*pte = pa | perm | PTE_P;

struct run {
  struct run *next;
};

struct {
  struct spinlock lock;
  int use_lock;
  struct run *freelist;
} kmem;

int
main(void)
{
  kinit1(end, P2V(4*1024*1024)); // phys page allocator
  ...
  kinit2(P2V(4*1024*1024), P2V(PHYSTOP)); // must come after startothers()
  ...
}

// Initialization happens in two phases.
// 1. main() calls kinit1() while still using entrypgdir to place just
// the pages mapped by entrypgdir on free list.
// 2. main() calls kinit2() with the rest of the physical pages
// after installing a full page table that maps them on all cores.
void
kinit1(void *vstart, void *vend)
{
  initlock(&kmem.lock, "kmem");
  kmem.use_lock = 0;
  freerange(vstart, vend);
}

void
kinit2(void *vstart, void *vend)
{
  freerange(vstart, vend);
  kmem.use_lock = 1;
}

// Grow current process's memory by n bytes.
// Return 0 on success, -1 on failure.
int
growproc(int n)
{
  uint sz;
  struct proc *curproc = myproc();

  sz = curproc->sz;
  if(n > 0){
    if((sz = allocuvm(curproc->pgdir, sz, sz + n)) == 0)
      return -1;
  } else if(n < 0){
    if((sz = deallocuvm(curproc->pgdir, sz, sz + n)) == 0)
      return -1;
  }
  curproc->sz = sz;
  switchuvm(curproc);
  return 0;
}

// Allocate page tables and physical memory to grow process from oldsz to
// newsz, which need not be page aligned.  Returns new size or 0 on error.
int
allocuvm(pde_t *pgdir, uint oldsz, uint newsz)
{
  char *mem;
  uint a;

  if(newsz >= KERNBASE)
    return 0;
  if(newsz < oldsz)
    return oldsz;

  a = PGROUNDUP(oldsz);
  for(; a < newsz; a += PGSIZE){
    mem = kalloc();
    if(mem == 0){
      cprintf("allocuvm out of memory\n");
      deallocuvm(pgdir, newsz, oldsz);
      return 0;
    }
    memset(mem, 0, PGSIZE);
    if(mappages(pgdir, (char*)a, PGSIZE, V2P(mem), PTE_W|PTE_U) < 0){
      cprintf("allocuvm out of memory (2)\n");
      deallocuvm(pgdir, newsz, oldsz);
      kfree(mem);
      return 0;
    }
  }
  return newsz;
}

// Deallocate user pages to bring the process size from oldsz to
// newsz.  oldsz and newsz need not be page-aligned, nor does newsz
// need to be less than oldsz.  oldsz can be larger than the actual
// process size.  Returns the new process size.
int
deallocuvm(pde_t *pgdir, uint oldsz, uint newsz)
{
  pte_t *pte;
  uint a, pa;

  if(newsz >= oldsz)
    return oldsz;

  a = PGROUNDUP(newsz);
  for(; a  < oldsz; a += PGSIZE){
    pte = walkpgdir(pgdir, (char*)a, 0);
    if(!pte)
      a = PGADDR(PDX(a) + 1, 0, 0) - PGSIZE;
    else if((*pte & PTE_P) != 0){
      pa = PTE_ADDR(*pte);
      if(pa == 0)
        panic("kfree");
      char *v = P2V(pa);
      kfree(v);
      *pte = 0;
    }
  }
  return newsz;
}

int
exec(char *path, char **argv)
{
  # ------------------------------------------
  # сначала загружаем образ программы в память
  # ------------------------------------------

  ...
  if((ip = namei(path)) == 0){   # ищет и возвращает inode по адресу path
    end_op();
    cprintf("exec: fail\n");
    return -1;
  }
  ilock(ip);		# лочит полученный inode

  // Check ELF header
  if(readi(ip, (char*)&elf, 0, sizeof(elf)) != sizeof(elf))		# читает заголовок ELF-файла из inode в структуру &elf (которая имеет тип elfhdr)
    goto bad;
  if(elf.magic != ELF_MAGIC)									# проверяет, что это действительно ELF-файл
    goto bad;

  if((pgdir = setupkvm()) == 0)									# аллоцирует новую таблицу страниц для этого процесса
    goto bad;

  // Load program into memory.
  for(i=0, off=elf.phoff; i<elf.phnum; i++, off+=sizeof(ph)){	# проходим по всем program headers ELF-файла, в каждом из которых описано расположение какого-либо сегмента памяти
    if(readi(ip, (char*)&ph, off, sizeof(ph)) != sizeof(ph))	# читает с диска program header
      goto bad;
    if((sz = allocuvm(pgdir, sz, ph.vaddr + ph.memsz)) == 0)	# выделяем в виртуальной памяти кусок под сегмент
      goto bad;
    if(loaduvm(pgdir, (char*)ph.vaddr, ip, ph.off, ph.filesz) < 0)	# загружаем постранично сегмент в память
      goto bad;
  }
  iunlockput(ip); 		# разлочивает inode

  # --------------------------------------------

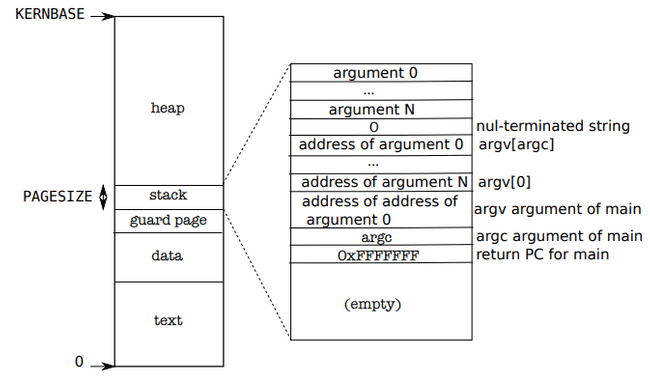

  # теперь будем создавать пользовательский стек
  # --------------------------------------------

  // Allocate two pages at the next page boundary.
  // Make the first inaccessible.  Use the second as the user stack.
  sz = PGROUNDUP(sz);
  if((sz = allocuvm(pgdir, sz, sz + 2*PGSIZE)) == 0) # аллоцируем 2 страницы над сегментами
    goto bad;
  clearpteu(pgdir, (char*)(sz - 2*PGSIZE));			 # первую страницу удаляем из таблицы страниц, это будет наша guard page
  sp = sz;

  // Push argument strings, prepare rest of stack in ustack.
  for(argc = 0; argv[argc]; argc++) {
    sp = (sp - (strlen(argv[argc]) + 1)) & ~3;
    if(copyout(pgdir, sp, argv[argc], strlen(argv[argc]) + 1) < 0)
      goto bad;
    ustack[3+argc] = sp;
  }
  ustack[3+argc] = 0;

  ustack[0] = 0xffffffff;  // fake return PC
  ustack[1] = argc;
  ustack[2] = sp - (argc+1)*4;  // argv pointer

  sp -= (3+argc+1) * 4;
  if(copyout(pgdir, sp, ustack, (3+argc+1)*4) < 0)		# записываем стек в память
    goto bad;

  # -----------------------------------
  # теперь переключаемся на новый имедж
  # -----------------------------------

  // Commit to the user image.
  oldpgdir = curproc->pgdir;
  curproc->pgdir = pgdir;	# устанавливаем процессу созданную нами таблицу страниц
  curproc->sz = sz;
  curproc->tf->eip = elf.entry;  # следующей выполняемой инструкцией будет точка входа в загруженный образ
  curproc->tf->esp = sp;		# устанавливаем указатель стека на созданный нами стек
  switchuvm(curproc);		# переключаемся на использование образа нового процесса
  freevm(oldpgdir);			# удаляем старую таблицу страниц
  return 0;
}

void
tvinit(void)
{
  int i;

  for(i = 0; i < 256; i++)
    SETGATE(idt[i], 0, SEG_KCODE<<3, vectors[i], 0);
  SETGATE(idt[T_SYSCALL], 1, SEG_KCODE<<3, vectors[T_SYSCALL], DPL_USER);

  initlock(&tickslock, "time");
}

// Set up a normal interrupt/trap gate descriptor.
// - istrap: 1 for a trap (= exception) gate, 0 for an interrupt gate.
//   interrupt gate clears FL_IF, trap gate leaves FL_IF alone
// - sel: Code segment selector for interrupt/trap handler
// - off: Offset in code segment for interrupt/trap handler
// - dpl: Descriptor Privilege Level -
//        the privilege level required for software to invoke
//        this interrupt/trap gate explicitly using an int instruction.
#define SETGATE(gate, istrap, sel, off, d)                \
{                                                         \
  (gate).off_15_0 = (uint)(off) & 0xffff;                \
  (gate).cs = (sel);                                      \
  (gate).args = 0;                                        \
  (gate).rsv1 = 0;                                        \
  (gate).type = (istrap) ? STS_TG32 : STS_IG32;           \
  (gate).s = 0;                                           \
  (gate).dpl = (d);                                       \
  (gate).p = 1;                                           \
  (gate).off_31_16 = (uint)(off) >> 16;                  \
}

void
trap(struct trapframe *tf)
{
  if(tf->trapno == T_SYSCALL){
    ...
    myproc()->tf = tf;
    syscall();
    ...
    return;
  }
  ...
}

void
syscall(void)
{
  int num;
  struct proc *curproc = myproc();

  num = curproc->tf->eax;
  if(num > 0 && num < NELEM(syscalls) && syscalls[num]) {
    curproc->tf->eax = syscalls[num]();
  } else {
    cprintf("%d %s: unknown sys call %d\n",
            curproc->pid, curproc->name, num);
    curproc->tf->eax = -1;
  }
}

static int (*syscalls[])(void) = {
[SYS_fork]    sys_fork,
[SYS_exit]    sys_exit,
[SYS_wait]    sys_wait,
[SYS_pipe]    sys_pipe,
[SYS_read]    sys_read,
[SYS_kill]    sys_kill,
[SYS_exec]    sys_exec,
[SYS_fstat]   sys_fstat,
[SYS_chdir]   sys_chdir,
[SYS_dup]     sys_dup,
[SYS_getpid]  sys_getpid,
[SYS_sbrk]    sys_sbrk,
[SYS_sleep]   sys_sleep,
[SYS_uptime]  sys_uptime,
[SYS_open]    sys_open,
[SYS_write]   sys_write,
[SYS_mknod]   sys_mknod,
[SYS_unlink]  sys_unlink,
[SYS_link]    sys_link,
[SYS_mkdir]   sys_mkdir,
[SYS_close]   sys_close,
};

void
ioapicenable(int irq, int cpunum)
{
  // Mark interrupt edge-triggered, active high,
  // enabled, and routed to the given cpunum,
  // which happens to be that cpu's APIC ID.
  ioapicwrite(REG_TABLE+2*irq, T_IRQ0 + irq);
  ioapicwrite(REG_TABLE+2*irq+1, cpunum << 24);
}

void
consoleinit(void)
{
  ...
  ioapicenable(IRQ_KBD, 0);
}

void
ideinit(void)
{
  ...
  ioapicenable(IRQ_IDE, ncpu - 1);
  ...
}

struct buf {
  int flags;			# B_VALID если данные прочитали, B_DIRTY если они изменились и нужно их записать
  uint dev;				# номер устройства
  uint blockno;			# номер сектора
  struct sleeplock lock;
  uint refcnt;
  struct buf *prev; // LRU cache list
  struct buf *next;
  struct buf *qnext; // disk queue
  uchar data[BSIZE];	# копия данных сектора в памяти
};

void
ideinit(void)
{
  int i;

  initlock(&idelock, "ide");
  ioapicenable(IRQ_IDE, ncpu - 1);	# включает прерывание диска
  idewait(0);						# ждет, пока диск будет готов к принятию команд

  // Check if disk 1 is present
  outb(0x1f6, 0xe0 | (1<<4));		# проверяет доступен ли еще один диск - диск 1. Для этого пишет в порт 0x1f6, чтобы выбрать этот диск
  for(i=0; i<1000; i++){			# затем в течение 1000 попыток пытается прочесть статус с порта 0x1f7. Если получается - считаем, что диск есть.
    if(inb(0x1f7) != 0){
      havedisk1 = 1;
      break;
    }
  }

  // Switch back to disk 0.
  outb(0x1f6, 0xe0 | (0<<4));		# выбираем обратно диск 0
}

// Wait for IDE disk to become ready.
static int
idewait(int checkerr)
{
  int r;

  while(((r = inb(0x1f7)) & (IDE_BSY|IDE_DRDY)) != IDE_DRDY)
    ;
  if(checkerr && (r & (IDE_DF|IDE_ERR)) != 0)
    return -1;
  return 0;
}

// Sync buf with disk.
// If B_DIRTY is set, write buf to disk, clear B_DIRTY, set B_VALID.
// Else if B_VALID is not set, read buf from disk, set B_VALID.
void
iderw(struct buf *b)
{
  struct buf **pp;

  if(!holdingsleep(&b->lock))
    panic("iderw: buf not locked");
  if((b->flags & (B_VALID|B_DIRTY)) == B_VALID)
    panic("iderw: nothing to do");
  if(b->dev != 0 && !havedisk1)
    panic("iderw: ide disk 1 not present");

  acquire(&idelock);  //DOC:acquire-lock

  // Append b to idequeue.
  b->qnext = 0;
  for(pp=&idequeue; *pp; pp=&(*pp)->qnext)  // записываем наш буфер в очередь запросов к диску. idequeue указывает на буфер, который сейчас читается или пишется на диск.
    ;
  *pp = b;

  // Start disk if necessary.
  if(idequeue == b)						// если подошла очередь нашего блока, то сразу его обрабатываем. Иначе - ему придется подождать, пока не сработают прерывания завершения операции для всех блоков перед ним.
    idestart(b);

  // Wait for request to finish.
  while((b->flags & (B_VALID|B_DIRTY)) != B_VALID){
    sleep(b, &idelock);
  }


  release(&idelock);
}

// Start the request for b.  Caller must hold idelock.
static void
idestart(struct buf *b)
{
  if(b == 0)
    panic("idestart");
  if(b->blockno >= FSSIZE)
    panic("incorrect blockno");
  int sector_per_block =  BSIZE/SECTOR_SIZE;
  int sector = b->blockno * sector_per_block;
  int read_cmd = (sector_per_block == 1) ? IDE_CMD_READ :  IDE_CMD_RDMUL;
  int write_cmd = (sector_per_block == 1) ? IDE_CMD_WRITE : IDE_CMD_WRMUL;

  if (sector_per_block > 7) panic("idestart");

  idewait(0);
  outb(0x3f6, 0);  // generate interrupt
  outb(0x1f2, sector_per_block);  // number of sectors
  outb(0x1f3, sector & 0xff);
  outb(0x1f4, (sector >> 8) & 0xff);
  outb(0x1f5, (sector >> 16) & 0xff);
  outb(0x1f6, 0xe0 | ((b->dev&1)<<4) | ((sector>>24)&0x0f));
  if(b->flags & B_DIRTY){
    outb(0x1f7, write_cmd);
    outsl(0x1f0, b->data, BSIZE/4);
  } else {
    outb(0x1f7, read_cmd);
  }
}

void
trap(struct trapframe *tf)
{
  ...
  case T_IRQ0 + IRQ_IDE:
    ideintr();					# регистрируем вызов нашего обработчика
    lapiceoi();
    break;
  ...
}

// Interrupt handler.
void
ideintr(void)
{
  struct buf *b;

  // First queued buffer is the active request.
  acquire(&idelock);

  if((b = idequeue) == 0){	# читаем текущий буфер в b
    release(&idelock);
    return;
  }
  idequeue = b->qnext;		# продвигаем очередь к следующему буферу

  // Read data if needed.
  if(!(b->flags & B_DIRTY) && idewait(1) >= 0)	# если флаг b не выставлен, значит у нас не запись, значит - чтение
    insl(0x1f0, b->data, BSIZE/4);				# подаем на ассемблер команду прочесть данные с порта ввода-вывода 0x1f0 в буфер b->data

  // Wake process waiting for this buf.
  b->flags |= B_VALID;
  b->flags &= ~B_DIRTY;
  wakeup(b);

  if(idequeue != 0)			# запускаем обработку следующео буфера в очереди
    idestart(idequeue);

  release(&idelock);
}

// Mutual exclusion lock.
struct spinlock {
  uint locked;       // Is the lock held?

  // For debugging:
  char *name;        // Name of lock.
  struct cpu *cpu;   // The cpu holding the lock.
  uint pcs[10];      // The call stack (an array of program counters)
                     // that locked the lock.
};

static inline uint
xchg(volatile uint *addr, uint newval)
{
  uint result;

  // The + in "+m" denotes a read-modify-write operand.
  asm volatile("lock; xchgl %0, %1" :
               "+m" (*addr), "=a" (result) :
               "1" (newval) :
               "cc");
  return result;
}

// Acquire the lock.
// Loops (spins) until the lock is acquired.
// Holding a lock for a long time may cause
// other CPUs to waste time spinning to acquire it.
void
acquire(struct spinlock *lk)
{
  pushcli(); // disable interrupts to avoid deadlock.

  while(xchg(&lk->locked, 1) != 0);   # пишем в память 1 и проверяем, что там был 0. если мы записали 1, а там и так был 1, значит лок захвачен другим потоком.

  // Tell the C compiler and the processor to not move loads or stores
  // past this point, to ensure that the critical section's memory
  // references happen after the lock is acquired.
  __sync_synchronize();

  lk->cpu = mycpu();
  getcallerpcs(&lk, lk->pcs);
}

// Release the lock.
void
release(struct spinlock *lk)
{
  ...
  lk->pcs[0] = 0;
  lk->cpu = 0;

  // Tell the C compiler and the processor to not move loads or stores
  // past this point, to ensure that all the stores in the critical
  // section are visible to other cores before the lock is released.
  // Both the C compiler and the hardware may re-order loads and
  // stores; __sync_synchronize() tells them both not to.
  __sync_synchronize();

  // Release the lock, equivalent to lk->locked = 0.
  // This code can't use a C assignment, since it might
  // not be atomic. A real OS would use C atomics here.
  asm volatile("movl $0, %0" : "+m" (lk->locked) : );

  popcli();
}

// Long-term locks for processes
struct sleeplock {
  uint locked;       // Is the lock held?
  struct spinlock lk; // spinlock protecting this sleep lock

  // For debugging:
  char *name;        // Name of lock.
  int pid;           // Process holding lock
};

void
acquiresleep(struct sleeplock *lk)
{
  acquire(&lk->lk);
  while (lk->locked) {
    sleep(lk, &lk->lk);
  }
  lk->locked = 1;
  lk->pid = myproc()->pid;
  release(&lk->lk);
}

void
releasesleep(struct sleeplock *lk)
{
  acquire(&lk->lk);
  lk->locked = 0;
  lk->pid = 0;
  wakeup(lk);
  release(&lk->lk);
}

sleep(void *chan, struct spinlock *lk)
{
  struct proc *p = myproc();

  if(p == 0)
    panic("sleep");

  if(lk == 0)
    panic("sleep without lk");

  // Must acquire ptable.lock in order to
  // change p->state and then call sched.
  // Once we hold ptable.lock, we can be
  // guaranteed that we won't miss any wakeup
  // (wakeup runs with ptable.lock locked),
  // so it's okay to release lk.
  if(lk != &ptable.lock){  //DOC: sleeplock0
    acquire(&ptable.lock);  //DOC: sleeplock1
    release(lk);
  }
  // Go to sleep.
  p->chan = chan;
  p->state = SLEEPING;

  sched();

  // Tidy up.
  p->chan = 0;

  // Reacquire original lock.
  if(lk != &ptable.lock){  //DOC: sleeplock2
    release(&ptable.lock);
    acquire(lk);
  }
}

struct {
  struct spinlock lock;
  struct buf buf[NBUF];  // связанный список секторов в кэше, каждый ссылается на соседние через prev/next

  struct buf head;
} bcache;

// Write b's contents to disk.  Must be locked.
void
bwrite(struct buf *b)
{
  if(!holdingsleep(&b->lock))
    panic("bwrite");
  b->flags |= B_DIRTY;
  iderw(b);
}

// Return a locked buf with the contents of the indicated block.
struct buf*
bread(uint dev, uint blockno)
{
  struct buf *b;

  b = bget(dev, blockno);
  if((b->flags & B_VALID) == 0) { // данные неактуальны
    iderw(b);                     // нужно перечитать с диска
  }
  return b;
}

// Look through buffer cache for block on device dev.
// If not found, allocate a buffer.
// In either case, return locked buffer.
static struct buf*
bget(uint dev, uint blockno)
{
  struct buf *b;

  acquire(&bcache.lock);

  for(b = bcache.head.next; b != &bcache.head; b = b->next){  // проходим по закэшированным буфам
    if(b->dev == dev && b->blockno == blockno){   // проверяем, искомый ли это буф
      b->refcnt++;            // если да, то инкрементируем счетчик ссылок и возвращаем сектор
      release(&bcache.lock);
      acquiresleep(&b->lock);
      return b;
    }
  }

  // Если мы оказались здесь, значит в памяти искомого сектора нет
  // Нужно убрать из кэша один сектора и положить на его место прочитанный с диска
  // Убирать из кэша можно только сектор, который никем не используется и не содержт незаписанных на диск изменений.
  // То есть у него должно быть refcnt == 0 и не стоять флаг B_DIRTY.
  for(b = bcache.head.prev; b != &bcache.head; b = b->prev){ // кэш закольцован, поэтому через head.prev мы можем обратиться к последнему элементу, это будет least recently used элемент
    if(b->refcnt == 0 && (b->flags & B_DIRTY) == 0) {
      b->dev = dev;           // когда нашли неиспользуемый сектор в кэше, то просто перезаписываем его поля
      b->blockno = blockno;
      b->flags = 0;           // это сбросить флаг B_VALID, чтобы bread узнал, что в секторе неактуальные данные и прочитал их туда с диска
      b->refcnt = 1;
      release(&bcache.lock);
      acquiresleep(&b->lock);
      return b;
    }
  }
  panic("bget: no buffers");
}

// Release a locked buffer.
// Move to the head of the MRU list.
void
brelse(struct buf *b)
{
  if(!holdingsleep(&b->lock))
    panic("brelse");

  releasesleep(&b->lock);

  acquire(&bcache.lock);
  b->refcnt--;
  if (b->refcnt == 0) {
    // no one is waiting for it.
    b->next->prev = b->prev;
    b->prev->next = b->next;
    b->next = bcache.head.next;
    b->prev = &bcache.head;
    bcache.head.next->prev = b;
    bcache.head.next = b;
  }

  release(&bcache.lock);
}

begin_op();
...
bp = bread(...);
bp->data[...] = ...;
log_write(bp);
...
end_op();

// Contents of the header block, used for both the on-disk header block
// and to keep track in memory of logged block# before commit.
struct logheader {
  int n;
  int block[LOGSIZE];
};

struct log {
  struct spinlock lock;
  int start;
  int size;
  int outstanding; // how many FS sys calls are executing.
  int committing;  // in commit(), please wait.
  int dev;
  struct logheader lh;
};
struct log log;

// called at the start of each FS system call.
void
begin_op(void)
{
  acquire(&log.lock);
  while(1){
    if(log.committing){
      sleep(&log, &log.lock);
    } else if(log.lh.n + (log.outstanding+1)*MAXOPBLOCKS > LOGSIZE){
      // this op might exhaust log space; wait for commit.
      sleep(&log, &log.lock);
    } else {
      log.outstanding += 1;
      release(&log.lock);
      break;
    }
  }
}

// Caller has modified b->data and is done with the buffer.
// Record the block number and pin in the cache with B_DIRTY.
// commit()/write_log() will do the disk write.
//
// log_write() replaces bwrite(); a typical use is:
//   bp = bread(...)
//   modify bp->data[]
//   log_write(bp)
//   brelse(bp)
void
log_write(struct buf *b)
{
  int i;

  if (log.lh.n >= LOGSIZE || log.lh.n >= log.size - 1)
    panic("too big a transaction");
  if (log.outstanding < 1)
    panic("log_write outside of trans");

  acquire(&log.lock);
  for (i = 0; i < log.lh.n; i++) {
    if (log.lh.block[i] == b->blockno)   // log absorbtion
      break;
  }
  log.lh.block[i] = b->blockno;
  if (i == log.lh.n)
    log.lh.n++;
  b->flags |= B_DIRTY; // prevent eviction
  release(&log.lock);
}

static void
commit()
{
  if (log.lh.n > 0) {
    write_log();     // Write modified blocks from cache to log
    write_head();    // Write header to disk -- the real commit
    install_trans(); // Now install writes to home locations
    log.lh.n = 0;
    write_head();    // Erase the transaction from the log
  }
}


// called at the end of each FS system call.
// commits if this was the last outstanding operation.
void
end_op(void)
{
  int do_commit = 0;

  acquire(&log.lock);
  log.outstanding -= 1;
  if(log.committing)
    panic("log.committing");
  if(log.outstanding == 0){
    do_commit = 1;
    log.committing = 1;
  } else {
    // begin_op() may be waiting for log space,
    // and decrementing log.outstanding has decreased
    // the amount of reserved space.
    wakeup(&log);
  }
  release(&log.lock);

  if(do_commit){
    // call commit w/o holding locks, since not allowed
    // to sleep with locks.
    commit();
    acquire(&log.lock);
    log.committing = 0;
    wakeup(&log);
    release(&log.lock);
  }
}

static void
recover_from_log(void)
{
  read_head();
  install_trans(); // if committed, copy from log to disk
  log.lh.n = 0;
  write_head(); // clear the log
}

begin_op();
ilock(f->ip);
if ((r = writei(f->ip, addr + i, f->off, n1)) > 0)
  f->off += r;
iunlock(f->ip);
end_op();

// Allocate a zeroed disk block.
static uint
balloc(uint dev)
{
  int b, bi, m;
  struct buf *bp;

  bp = 0;
  for(b = 0; b < sb.size; b += BPB){
    bp = bread(dev, BBLOCK(b, sb));
    for(bi = 0; bi < BPB && b + bi < sb.size; bi++){
      m = 1 << (bi % 8);
      if((bp->data[bi/8] & m) == 0){  // Is block free?
        bp->data[bi/8] |= m;  // Mark block in use.
        log_write(bp);
        brelse(bp);
        bzero(dev, b + bi);
        return b + bi;
      }
    }
    brelse(bp);
  }
  panic("balloc: out of blocks");
}

// Free a disk block.
static void
bfree(int dev, uint b)
{
  struct buf *bp;
  int bi, m;

  readsb(dev, &sb);
  bp = bread(dev, BBLOCK(b, sb));
  bi = b % BPB;
  m = 1 << (bi % 8);
  if((bp->data[bi/8] & m) == 0)
    panic("freeing free block");
  bp->data[bi/8] &= ~m;
  log_write(bp);
  brelse(bp);
}

// On-disk inode structure
struct dinode {
  short type;           // Тип айнода: файл, директория, "специальный" файл (девайс). 0 означает, что айнод свободен.
  short major;          // Major device number (T_DEV only)
  short minor;          // Minor device number (T_DEV only)
  short nlink;          // Количество ссылок на этот айнод из директорий. Когда достигает нуля, айнод можно удалять.
  uint size;            // Размер, т.е. количество байт в содержимом файла
  uint addrs[NDIRECT+1];   // Номера секторов данных на диске, в которых записано содержимое файла
};

// in-memory copy of an inode
struct inode {
  uint dev;           // Device number
  uint inum;          // Inode number
  int ref;            // Количество C-указателей на этот айнод, когда достигает нуля - удаляем из памяти.
  struct sleeplock lock; // protects everything below here
  int valid;          // inode has been read from disk?

  short type;         // copy of disk inode
  short major;
  short minor;
  short nlink;
  uint size;
  uint addrs[NDIRECT+1];
};

// Allocate an inode on device dev.
// Mark it as allocated by  giving it type type.
// Returns an unlocked but allocated and referenced inode.
struct inode*
ialloc(uint dev, short type)
{
  int inum;
  struct buf *bp;
  struct dinode *dip;

  for(inum = 1; inum < sb.ninodes; inum++){
    bp = bread(dev, IBLOCK(inum, sb));
    dip = (struct dinode*)bp->data + inum%IPB;
    if(dip->type == 0){  // a free inode
      memset(dip, 0, sizeof(*dip));
      dip->type = type;
      log_write(bp);   // mark it allocated on the disk
      brelse(bp);
      return iget(dev, inum);
    }
    brelse(bp);
  }
  panic("ialloc: no inodes");
}

// Find the inode with number inum on device dev
// and return the in-memory copy. Does not lock
// the inode and does not read it from disk.
static struct inode*
iget(uint dev, uint inum)
{
  struct inode *ip, *empty;

  acquire(&icache.lock);

  // Is the inode already cached?
  empty = 0;
  for(ip = &icache.inode[0]; ip < &icache.inode[NINODE]; ip++){
    if(ip->ref > 0 && ip->dev == dev && ip->inum == inum){
      ip->ref++;
      release(&icache.lock);
      return ip;
    }
    if(empty == 0 && ip->ref == 0)    // Remember empty slot.
      empty = ip;
  }

  // Recycle an inode cache entry.
  if(empty == 0)
    panic("iget: no inodes");

  ip = empty;
  ip->dev = dev;
  ip->inum = inum;
  ip->ref = 1;
  ip->valid = 0;
  release(&icache.lock);

  return ip;
}

// Lock the given inode.
// Reads the inode from disk if necessary.
void
ilock(struct inode *ip)
{
  struct buf *bp;
  struct dinode *dip;

  if(ip == 0 || ip->ref < 1)
    panic("ilock");

  acquiresleep(&ip->lock);

  if(ip->valid == 0){
    bp = bread(ip->dev, IBLOCK(ip->inum, sb));
    dip = (struct dinode*)bp->data + ip->inum%IPB;
    ip->type = dip->type;
    ip->major = dip->major;
    ip->minor = dip->minor;
    ip->nlink = dip->nlink;
    ip->size = dip->size;
    memmove(ip->addrs, dip->addrs, sizeof(ip->addrs));
    brelse(bp);
    ip->valid = 1;
    if(ip->type == 0)
      panic("ilock: no type");
  }
}

// Unlock the given inode.
void
iunlock(struct inode *ip)
{
  if(ip == 0 || !holdingsleep(&ip->lock) || ip->ref < 1)
    panic("iunlock");

  releasesleep(&ip->lock);
}

// Copy stat information from inode.
// Caller must hold ip->lock.
void
stati(struct inode *ip, struct stat *st)
{
  st->dev = ip->dev;
  st->ino = ip->inum;
  st->type = ip->type;
  st->nlink = ip->nlink;
  st->size = ip->size;
}

//PAGEBREAK!
// Read data from inode.
// Caller must hold ip->lock.
int
readi(struct inode *ip, char *dst, uint off, uint n)
{
  uint tot, m;
  struct buf *bp;

  if(ip->type == T_DEV){
    if(ip->major < 0 || ip->major >= NDEV || !devsw[ip->major].read)
      return -1;
    return devsw[ip->major].read(ip, dst, n);
  }

  if(off > ip->size || off + n < off)
    return -1;
  if(off + n > ip->size)
    n = ip->size - off;

  for(tot=0; tot<n; tot+=m, off+=m, dst+=m){
    bp = bread(ip->dev, bmap(ip, off/BSIZE));
    m = min(n - tot, BSIZE - off%BSIZE);
    memmove(dst, bp->data + off%BSIZE, m);
    brelse(bp);
  }
  return n;
}

// PAGEBREAK!
// Write data to inode.
// Caller must hold ip->lock.
int
writei(struct inode *ip, char *src, uint off, uint n)
{
  uint tot, m;
  struct buf *bp;

  if(ip->type == T_DEV){
    if(ip->major < 0 || ip->major >= NDEV || !devsw[ip->major].write)
      return -1;
    return devsw[ip->major].write(ip, src, n);
  }

  if(off > ip->size || off + n < off)
    return -1;
  if(off + n > MAXFILE*BSIZE)
    return -1;

  for(tot=0; tot<n; tot+=m, off+=m, src+=m){
    bp = bread(ip->dev, bmap(ip, off/BSIZE));
    m = min(n - tot, BSIZE - off%BSIZE);
    memmove(bp->data + off%BSIZE, src, m);
    log_write(bp);
    brelse(bp);
  }

  if(n > 0 && off > ip->size){
    ip->size = off;
    iupdate(ip);
  }
  return n;
}

// Look for a directory entry in a directory.
// If found, set *poff to byte offset of entry.
struct inode*
dirlookup(struct inode *dp, char *name, uint *poff)
{
  uint off, inum;
  struct dirent de;

  if(dp->type != T_DIR)
    panic("dirlookup not DIR");

  for(off = 0; off < dp->size; off += sizeof(de)){
    if(readi(dp, (char*)&de, off, sizeof(de)) != sizeof(de))
      panic("dirlookup read");
    if(de.inum == 0)
      continue;
    if(namecmp(name, de.name) == 0){
      // entry matches path element
      if(poff)
        *poff = off;
      inum = de.inum;
      return iget(dp->dev, inum);
    }
  }

  return 0;
}

// Write a new directory entry (name, inum) into the directory dp.
int
dirlink(struct inode *dp, char *name, uint inum)
{
  int off;
  struct dirent de;
  struct inode *ip;

  // Check that name is not present.
  if((ip = dirlookup(dp, name, 0)) != 0){
    iput(ip);
    return -1;
  }

  // Look for an empty dirent.
  for(off = 0; off < dp->size; off += sizeof(de)){
    if(readi(dp, (char*)&de, off, sizeof(de)) != sizeof(de))
      panic("dirlink read");
    if(de.inum == 0)
      break;
  }

  strncpy(de.name, name, DIRSIZ);
  de.inum = inum;
  if(writei(dp, (char*)&de, off, sizeof(de)) != sizeof(de))
    panic("dirlink");

  return 0;
}

// Copy the next path element from path into name.
// Return a pointer to the element following the copied one.
// The returned path has no leading slashes,
// so the caller can check *path=='\0' to see if the name is the last one.
// If no name to remove, return 0.
//
// Examples:
//   skipelem("a/bb/c", name) = "bb/c", setting name = "a"
//   skipelem("///a//bb", name) = "bb", setting name = "a"
//   skipelem("a", name) = "", setting name = "a"
//   skipelem("", name) = skipelem("////", name) = 0
//
static char*
skipelem(char *path, char *name)
{
  char *s;
  int len;

  while(*path == '/')
    path++;
  if(*path == 0)
    return 0;
  s = path;
  while(*path != '/' && *path != 0)
    path++;
  len = path - s;
  if(len >= DIRSIZ)
    memmove(name, s, DIRSIZ);
  else {
    memmove(name, s, len);
    name[len] = 0;
  }
  while(*path == '/')
    path++;
  return path;
}

// Look up and return the inode for a path name.
// If parent != 0, return the inode for the parent and copy the final
// path element into name, which must have room for DIRSIZ bytes.
// Must be called inside a transaction since it calls iput().
static struct inode*
namex(char *path, int nameiparent, char *name)
{
  struct inode *ip, *next;

  if(*path == '/')
    ip = iget(ROOTDEV, ROOTINO);
  else
    ip = idup(myproc()->cwd);

  while((path = skipelem(path, name)) != 0){
    ilock(ip);
    if(ip->type != T_DIR){
      iunlockput(ip);
      return 0;
    }
    if(nameiparent && *path == '\0'){
      // Stop one level early.
      iunlock(ip);
      return ip;
    }
    if((next = dirlookup(ip, name, 0)) == 0){
      iunlockput(ip);
      return 0;
    }
    iunlockput(ip);
    ip = next;
  }
  if(nameiparent){
    iput(ip);
    return 0;
  }
  return ip;
}

struct inode*
namei(char *path)
{
  char name[DIRSIZ];
  return namex(path, 0, name);
}

struct inode*
nameiparent(char *path, char *name)
{
  return namex(path, 1, name);
}

// Allocate a file structure.
struct file*
filealloc(void)
{
  struct file *f;

  acquire(&ftable.lock);
  for(f = ftable.file; f < ftable.file + NFILE; f++){
    if(f->ref == 0){
      f->ref = 1;
      release(&ftable.lock);
      return f;
    }
  }
  release(&ftable.lock);
  return 0;
}

// Close file f.  (Decrement ref count, close when reaches 0.)
void
fileclose(struct file *f)
{
  struct file ff;

  acquire(&ftable.lock);
  if(f->ref < 1)
    panic("fileclose");
  if(--f->ref > 0){
    release(&ftable.lock);
    return;
  }
  ff = *f;
  f->ref = 0;
  f->type = FD_NONE;
  release(&ftable.lock);

  if(ff.type == FD_PIPE)
    pipeclose(ff.pipe, ff.writable);
  else if(ff.type == FD_INODE){
    begin_op();
    iput(ff.ip);
    end_op();
  }
}

// Read from file f.
int
fileread(struct file *f, char *addr, int n)
{
  int r;

  if(f->readable == 0)
    return -1;
  if(f->type == FD_PIPE)
    return piperead(f->pipe, addr, n);
  if(f->type == FD_INODE){
    ilock(f->ip);
    if((r = readi(f->ip, addr, f->off, n)) > 0)
      f->off += r;
    iunlock(f->ip);
    return r;
  }
  panic("fileread");
}

//PAGEBREAK!
// Write to file f.
int
filewrite(struct file *f, char *addr, int n)
{
  int r;

  if(f->writable == 0)
    return -1;
  if(f->type == FD_PIPE)
    return pipewrite(f->pipe, addr, n);
  if(f->type == FD_INODE){
    // write a few blocks at a time to avoid exceeding
    // the maximum log transaction size, including
    // i-node, indirect block, allocation blocks,
    // and 2 blocks of slop for non-aligned writes.
    // this really belongs lower down, since writei()
    // might be writing a device like the console.
    int max = ((MAXOPBLOCKS-1-1-2) / 2) * 512;
    int i = 0;
    while(i < n){
      int n1 = n - i;
      if(n1 > max)
        n1 = max;

      begin_op();
      ilock(f->ip);
      if ((r = writei(f->ip, addr + i, f->off, n1)) > 0)
        f->off += r;
      iunlock(f->ip);
      end_op();

      if(r < 0)
        break;
      if(r != n1)
        panic("short filewrite");
      i += r;
    }
    return i == n ? n : -1;
  }
  panic("filewrite");
}
